SCR Thyristor Power Module – Failure Diagnosis & Prevention Guide

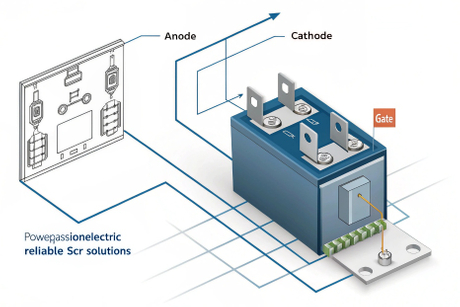

When it comes to high-power industrial gear—things like motor drives, welding setups, or big-time power supplies—the reliability of your SCR Thyristor Power Modules can literally make or break your operation. A failure here doesn't just mean a quick fix; it can lead to costly downtime and a maintenance headache.Interestingly, many of these failures aren't due to the parts themselves being faulty. Instead, they're often the result of something going wrong during installation, a lack of proper cooling, an unstable gate drive, or even just the environment they're in.But here's the good news: by knowing the most common ways these modules fail, the early signs to watch out for, and how to prevent them, you can seriously improve things. You'll be able to:

• Cut down on unexpected shutdowns and those frustrating, expensive production delays.

• Make your modules last way longer by handling their thermal and electrical needs correctly.

• Tweak your system design for the better with solid gate drive and protection circuits.

• Boost your overall return on investment since your components will simply last longer.

At PowerPassionElectric, we get it. That's why we don't just sell you top-notch SCR Thyristor Power Modules. We also stand by you with the engineering support you need to design, install, and maintain them so they run at peak reliability.

Q1: What are the most common failure modes in SCR Thyristor Power Modules?
A1: Typical issues include:

• Thermal Overload – caused by poor heat dissipation, blocked airflow, or high ambient temperature.

• Electrical Overstress – voltage spikes, current surges, or ESD can damage the device.

• Gate Drive Problems – unstable or insufficient gate triggering may prevent proper switching.

• Improper Mounting – wrong torque or misaligned cooling blocks reduce heat transfer.

• Aging & Fatigue – repeated thermal cycling gradually weakens internal bonds.

• Short Circuits – many SCRs fail in a shorted state, requiring fast fuse protection.

---

Q2: How can I identify early signs of SCR module failure?
A2: Watch for:

• Unexpected voltage drops across the device

• Overheating despite normal load conditions

• Blown fuses without external short-circuits

• SCR locked permanently in the ON state

• Lack of response to gate triggering signals

---

Q3: How can these failures be prevented in real-world applications?
A3:

Thermal Management – use proper heatsinks, ensure airflow, monitor temperature.

• Stable Gate Drive – follow recommended gate current/voltage values.

• Correct Mounting – apply torque as per datasheet guidelines, ensure flat contact.

• Surge Protection – add snubbers, varistors, and fuses to handle transients.

• Routine Checks – inspect clamps, use thermal imaging, and monitor current balance.

• Environmental Control – avoid condensation, dust accumulation, or corrosive atmosphere.

---

Q4: Which failures are most critical for my industry application?
A4:

• Motor drives / welding machines → overheating and surge protection are the top concerns.

• HVDC / power supplies → voltage transients and gate drive stability are critical.

• Induction heating → proper cooling and mounting torque are essential.

---

Q5: What support can PowerPassionElectric provide to minimize these risks?
By following these practices and using manufacturer-recommended installation methods, you can significantly extend module lifetime and ensure system reliability.

Failure Mode	Typical Symptoms	Prevention Measures
Thermal Overload	Device overheating, unexpected shutdown, reduced lifetime	Proper heatsinks, airflow management, thermal monitoring
Electrical Overstress	Blown fuses, device short-circuit, sudden failure	Snubber circuits, surge protection (MOV, TVS), fast-acting fuses
Gate Drive Issues	SCR fails to trigger, locked ON state, unstable operation	Stable gate pulse, correct current/voltage per datasheet
Improper Mounting	Hot spots, cracked casing, poor heat conduction	Correct torque, flat mounting surface, proper thermal compound
Aging & Fatigue	Gradual performance drop, higher resistance, micro-cracks	Regular inspection, thermal cycling checks
Short Circuits	Permanent short between terminals, sudden system failure	Fast fuses, proper current rating selection
Environmental Factors	Corrosion, condensation, dust accumulation	Clean environment, humidity control, protective coatings

⚡ If you're evaluating SCR Thyristor Power Modules for your project, contact PowerPassionElectric for datasheets, application notes, and tailored installation support. Our engineering team has helped partners in India, Europe, and South America optimize module performance and avoid costly downtime.
