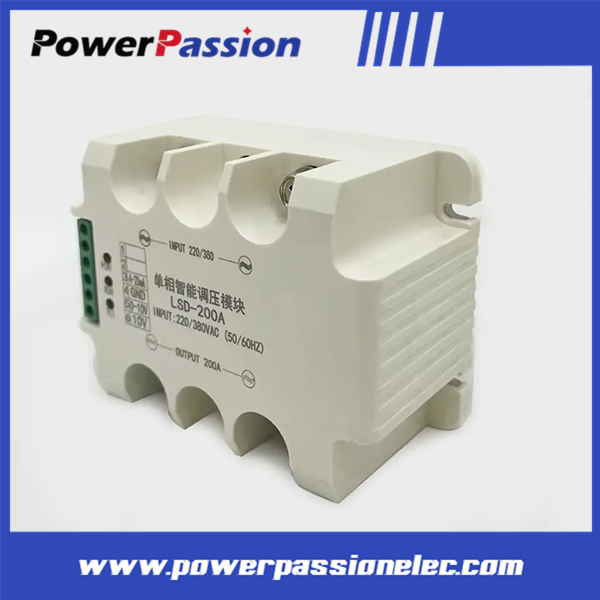

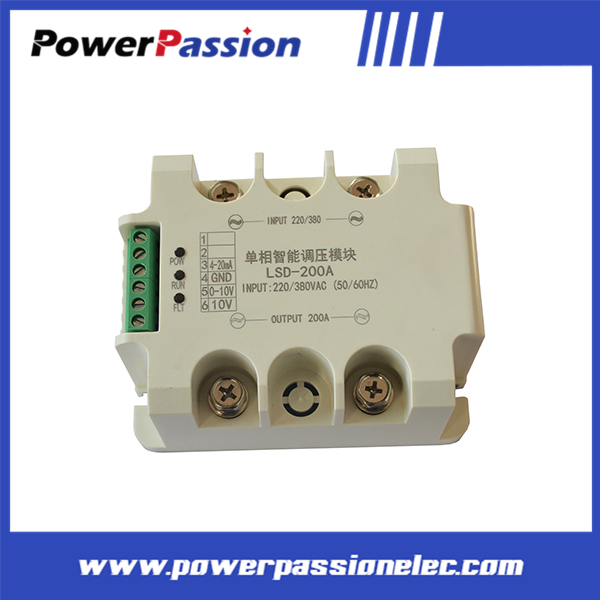

Single Phase Intelligent Voltage Regulator Module

Availability:

Quantity:



Inquire Add to Basket

Module

Product Description

Product Features：

1. Computer-enhanced control for linear I/O performance.

2. Premium imported chips with high interference immunity, heat resistance, and low thermal output.

3. Zero dead-band output voltage, compatible with resistive and inductive transformer loads.

4. Adjustable settings: 4-20mA, 0-10V, and potentiometer.

5. Precise voltage tuning and rapid zero-crossing power modulation.

6. Overheat safeguard with gentle start to prevent current surges.

7. Advanced transformer triggering for quick activation and reduced SCR heating.

8. Rigorous aging tests and moisture-proofing for long-term reliability.

Thyristor Module

High-Quality Construction: Crafted with precision and utilizing top-tier components, this SCR power control module offers unmatched reliability and durability, even in the most demanding environments, such as state-of-the-art welding machines.

Versatile Application: Engineered for a broad spectrum of machine applications, this module seamlessly adapts to various configurations, including single or array setups, tailored to fulfill the unique needs of each user.

Wide Operating Temperature Range: Designed to excel in extreme conditions, this module functions efficiently from a chilly -40°C to a scorching 150°C, ensuring steadfast performance in the harshest environments.

High-Current Handling: Boasting an impressive ability to manage a peak current of 800A, this module is the go-to choice for applications demanding robust and efficient high-power control.

Comprehensive Shipping Options: With shipping origins across prominent ports like Shanghai, Guangzhou, and Shenzhen, we offer diverse shipping avenues through EMS, DHL, UPS, FedEx, and TNT. This guarantees swift, reliable delivery, catering to our global clientele's convenience.

product name	single phase intelligent voltage regulation module
frequency	50-60HZ
phase	1
type	power module
voltage	220V-380V
output power	2KW-70KW

Type	IT(AV)	VDRM/ VRRM	VTM/ITM		IDRM/IRRM	VGT	Viso
	A	V	V	A	mA	V	V(AC)
MT 30A	30	400-1800	1.5	80	8	2.5	2500
MT 60A	55	400-1800	1.5	80	8	2.5	2500
MT 90A	90	400-1800	1.9	270	15	2.5	2500
MT 120A	110	400-1800	1.9	330	20	2.5	2500
MT 200A	200	400-1800	1.9	600	30	2.5	2500
MT 250A	250	400-1800	1.9	750	30	2.5	2500
MT 300A	300	400-1800	1.9	900	40	2.5	2500
MT 400A	400	400-1800	1.9	1050	40	3.0	2500
MT 500A	500	400-1800	1.9	1500	40	3.0	2500
MT 800A	800	400-1800	1.9	2400	40	3.0	2500
MT 500*A	500	400-1800	1.9	1500	40	3.0	2500
MT 800*A	800	400-1800	1.9	2400	40	3.0	2500

Features:

Experience robust reliability with our isolated mounting base, supporting voltages from 2500V to 6000V.
Engineered to international standards, our package boasts pressure contact technology, significantly enhancing power cycling capabilities.
Offers air-cooling for capacities up to 350A. For demands exceeding 400A, choose between efficient air-cooling or advanced water-cooling solutions.
(TSC) SVC
Enjoy effortless installation and straightforward maintenance for minimal downtime and maximum efficiency.
Achieve optimal space and weight efficiency without compromising performance.
The chip remains electrically insulated from the baseboard, ensuring safety with an AC isolation of 2500V.
Built with international standard seals for assured quality and durability.
Our vacuum and hydrogen protection bonding technique ensures superior performance and reliability.
Featuring a compression connection structure, this module excels in temperature management and enhances power circulation capabilities.
Modules supporting up to 350A benefit from forceful wind-cooling, while higher capacities up to 400A offer a choice between wind-cooling or water-cooling.
Designed for simplicity in installation and ease of service, enhancing user convenience.
Compact and lightweight design ensures ease of integration and handling.

Applications:

Ideal for precise AC/DC motor control applications.
Perfectly suits various rectifier power supply needs, ensuring reliability.
Optimized for industrial heating control applications, boosting efficiency.
Ideal for light-dimming and as a contactless switch for enhanced control systems.
Facilitates smooth AC motor control with a soft start feature.
Perfect for welding power supplies and converters, ensuring seamless operation.
Ideal for UPS, and both battery DC charging and discharging, ensuring reliable power supply management.
(TSC) SVC
Provides a DC supply for PWM inverter, maintaining stable performance.
Catered for various rectifying power supply applications with excellence.
Efficiently controls industrial heating, optimizing energy use.
Designed for precise dimming applications, offering seamless adjustability.
Functions as a contactless switch, ideal for modern control systems.
Enables motor soft start, reducing mechanical wear and ensuring smooth operation.
Designed for static reactive compensation, stabilizing your electrical systems.
Perfect for electric welding machines and frequency converters, enhancing performance.
Reliable UPS power supply solution for consistent energy management.
Efficiently manages battery charge and discharge operations.

Company Profile

At Zhenjiang Zhendi Electric Technology Co., Ltd, we pride ourselves on being a distinguished manufacturer of thyristor chips, evolved from a historical state-owned enterprise, leading the charge in both innovation and unparalleled quality.

Since our esteemed beginning in 1978, we have consistently dedicated ourselves to the design, production, and R&D of advanced thyristors. Over the years, we have transformed into a pioneering leader in solid state relays and thyristor rectifier modules. As a recognized national high-tech enterprise, we excel in producing cutting-edge AC power control controllers and much more.

Our unwavering dedication to exceptional customer service, paired with our promise of delivering competitively priced, premium quality products, distinctly positions us as industry forerunners.

Company Equipment

Certifications

Our cooperative partners

Packaging & Shipping

FAQ

Q Do you provide after-sales service?

A Of course, we offer comprehensive after-sales service. If you encounter any issues with our products during use, please feel free to contact us, and we will do our best to solve your problems. Within the warranty period, if there are any quality issues with the product, we will replace or repair it for free.
Q How can I place an order for your thyristor products?

A You can place an order by consulting our sales staff online, sending a purchase order to our email, or calling our order hotline directly.
Q Do you provide samples, and how is the charging handled?

A For low-value standard products, we can provide free samples for testing, but the customer is responsible for the shipping costs. High-value product samples come with a discount, which can be discussed on a case-by-case basis.
Q Do you have SCR Power Regulators products in stock?

A We have some conventional models in stock. For specific inventory, please consult our sales staff. For non-stock products, our delivery time is usually 15-30 days.
Q How can one determine if a thyristor is damaged?

A You can determine if a thyristor is damaged by checking if there are any anomalies in its forward and reverse blocking voltages. If so, the thyristor may be damaged. For specific products, please consult an engineer for detailed numerical reference and guidance.
