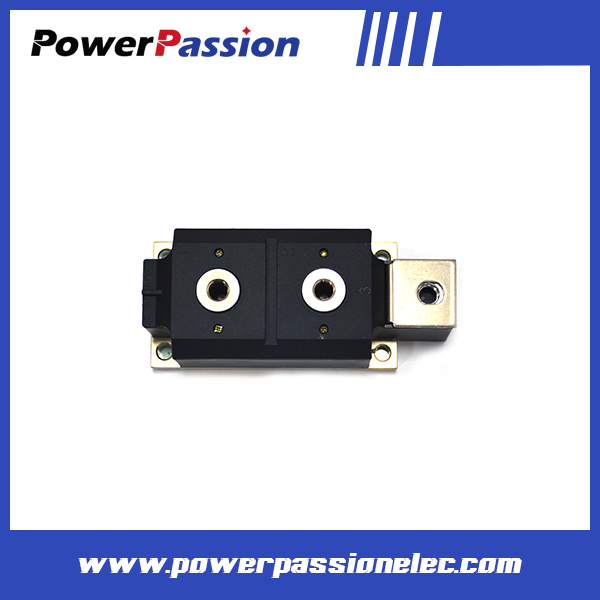

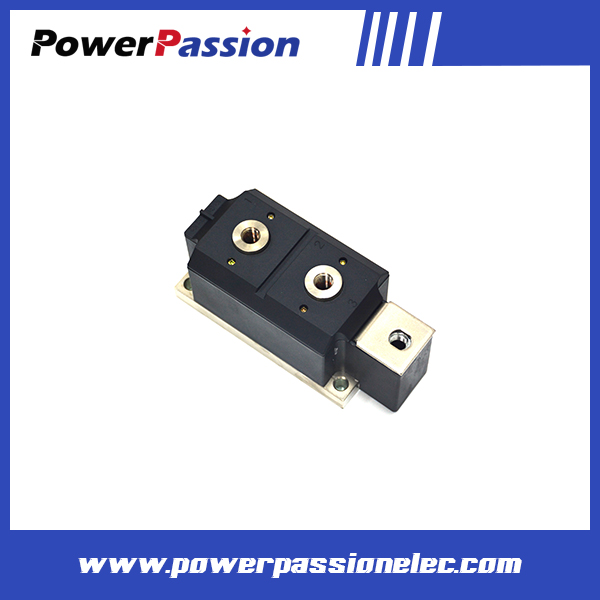

Thyristor Module

Thyristor Module

Power modules can be divided into two categories: controllable modules and rectifier modules based on internal packaging chips;

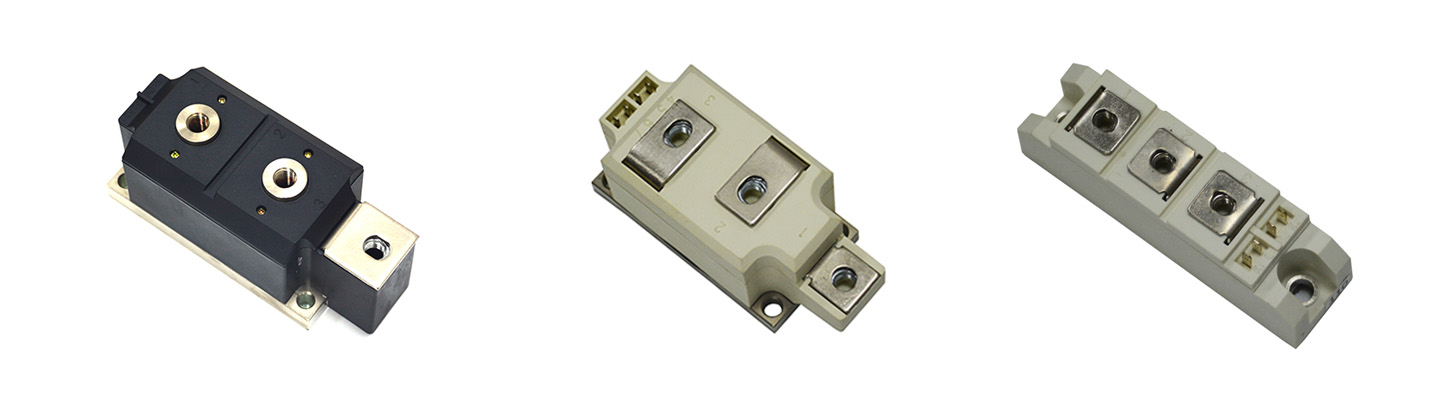

Distinguished from specific uses, it can be divided into: ordinary thyristor modules (MTC\MTX\MTK\MTA), ordinary rectifier modules (MDC), ordinary thyristors, rectifier hybrid modules (MFC), fast thyristors, rectifiers and hybrids Modules (MKC\MZC), non-insulated thyristors, rectifiers and hybrid modules (also commonly known as welding machine special modules MTG\MDG), three-phase rectifier bridge output thyristor modules (MDS), single-phase (three-phase phase) rectifier bridge module (MDQ), single-phase half-controlled bridge (three-phase fully controlled bridge) module (MTS) and Schottky module, etc.

Features:

• Isolated mounting base,2500V~6000V

• International standard packagePressure contact technology with increased power cycling capability

• Air-cooling for upto350A.for over 400A, air-cooling or water-cooling

• (TSC) SVC

• Simple mounting and easy maintenance

• Space and weight saving

• Chip electrically insolated from baseboard AC 2500V

• International standard seal

• Vacuum+sufficient hydrogen protection bonding technique

• Compression connection structure, fine temperature ,The characteristic and below power circulation ability

• Modules under 350A with compulsive wind-cooling Modulesunder 400A either with wind-cooling or water-cooling

• The installment is simple, the use service is convenient

• The volume is small , the weight is light

Applications:

• AC/DC motor control

• Various rectifier power supply

• Industrial heating control

• Light-dimmer,Contactless switch

• Soft startAC motor control

• Welding power supply Convertor

• UPS、 Battery DC chargers or dischargers

• (TSC) SVC

• DC supply for PWM inverter

• Various rectifying power supply

• Industrial heating control

• Dimming

• Contactless switch

• Motor soft start

• Static reactive compensation

• Electric welding machineFrequency converter

• UPS power supply

• Battery charge and discharge
