The “magic switch” of AC power: Phase Control Thyristor

Have you ever wondered how a dimming desk lamp changes brightness? Or how an electric fan adjusts speed? Behind these, there is often a key electronic component hidden - thyristor, especially phase-controlled thyristor for AC control.This article will take you to understand this powerful electronic "switch" in a simple way and tell you what you need to pay attention to when choosing and using it.

1. What is a phase-controlled thyristor? How is it different from an ordinary switch?

Imagine that the light switch at home has only two states: on (100% bright) and off (not bright at all). But what if you want the light to be only 50% bright? At this time, ordinary switches are powerless.

Phase-controlled thyristor is born to solve this problem. It is a special semiconductor switch, and the biggest difference from ordinary switches is:

It can accurately control the time point of "on": it can accurately select a "point" to conduct current in each cycle of AC (think of it as a repeating wave). By changing the position of this "conduction point", we can control the average power delivered to electrical appliances (such as light bulbs and motors), thereby achieving functions such as dimming and speed control. This process is called phase control.

Once turned on, specific conditions are required to turn off: thyristors have an interesting characteristic. Once triggered to turn on by a tiny "gate" signal, they will remain on until the current flowing through them naturally drops to zero. In AC applications, the current will cross zero at the end of each half-wave, which provides a natural convenience for the "automatic shutdown" of thyristors.

2. How does it achieve "phase control"?

We can use a more vivid metaphor to understand:

Imagine that you are using a water pipe to collect water from a bucket. The waveform of AC power is like the water flow from the faucet.

Ordinary switch: It is equivalent to you turning the faucet "fully open" or "fully closed".

Phase-controlled thyristor: It is equivalent to having a very fast-responding valve in your hand. You can keep the valve closed at the moment the water flow (current) starts, and then open the valve instantly at a precise time point (such as when the water flow is halfway to the maximum), and keep it open until the water flow of this cycle ends.

By controlling the "timing" (i.e. phase angle) of each valve opening, you can accurately control the amount of water (i.e. power) that eventually flows into the bucket. The earlier it is opened, the greater the power and the brighter the light; the later it is opened, the smaller the power and the dimmer the light.

3. Choosing phase-controlled thyristors? You must pay attention to these points!

This part is the key point, and it is also repeatedly reminded by experts in the forum. Improperly selected thyristors will not only fail to work properly, but may even burn out the equipment and cause danger.

Voltage and current ratings: This is the most basic parameter. You need to ensure that the rated voltage and rated current of the selected thyristor are much greater than the maximum voltage and current of your device. Leaving enough margin is the first step to safety.

dV/dt and dI/dt - two "invisible killers":

dV/dt (voltage change rate): If the voltage across the thyristor rises too quickly, it may be "accidentally" turned on even without a gate trigger signal. This can cause the device to lose control.

dI/dt (current change rate): At the moment of turn-on, if the current rises too quickly, the heat will be concentrated on a small point inside the thyristor, and the instantaneous high temperature is enough to burn it.

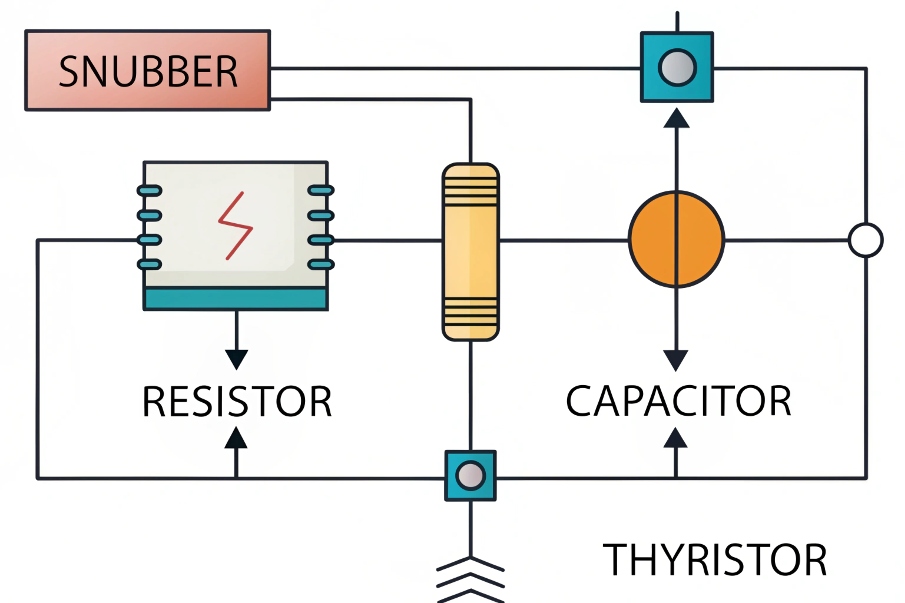

How to deal with it? Experts in the forum mentioned that it is necessary to design a **"snubber circuit"** (usually composed of a resistor and a capacitor in series) and connect it in parallel across the thyristor. This small circuit can effectively slow down the drastic changes in voltage and current and protect the thyristor.

Gate Drive:

How to send an "on" signal to the tiny "gate" of the thyristor is a science. You need a stable and reliable trigger circuit.

The intensity and duration of the trigger signal must be sufficient, especially when driving inductive loads (such as motors), a stronger or longer-lasting trigger pulse is required to ensure that the thyristor can be "reliably" turned on. The forum discussed the method of using pulse transformer isolation and driving.

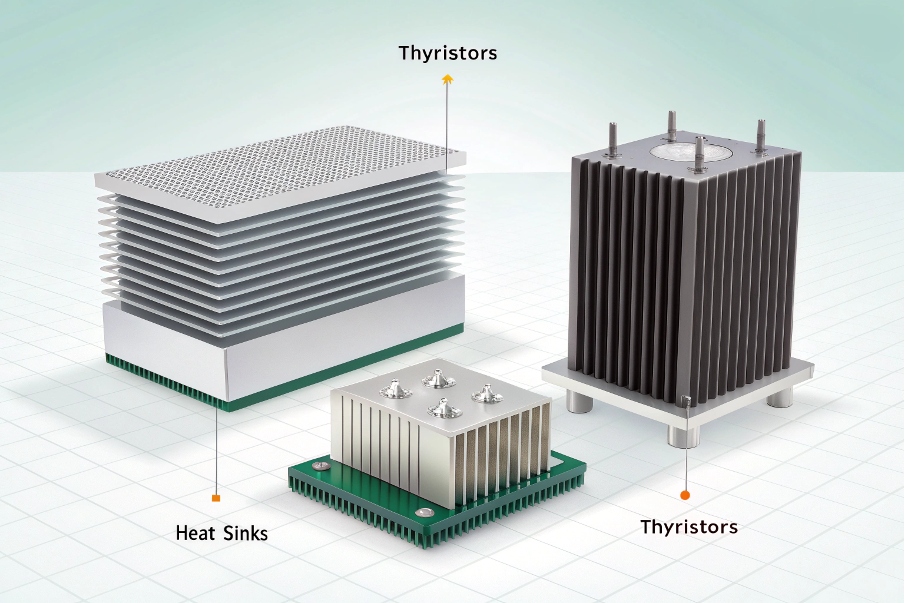

Cooling: Thyristors will generate heat when working, especially under high current. If the heat cannot be dissipated, the high temperature will cause its performance to deteriorate or even damage. Therefore, it is crucial to equip it with a suitable heat sink according to the power size.

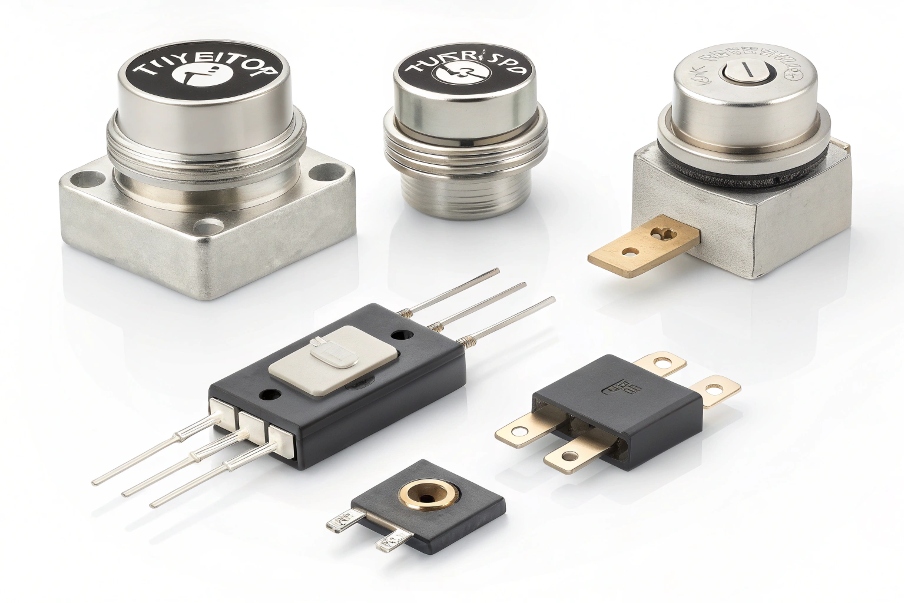

Package Type: Thyristors have various shapes and packages, from small "TO-220" packages to large "bolt-on" or "flat-type". This usually depends on its power level and installation method.

4. Where do they show their skills?

Phase-controlled thyristors are widely used in industrial and civilian fields:

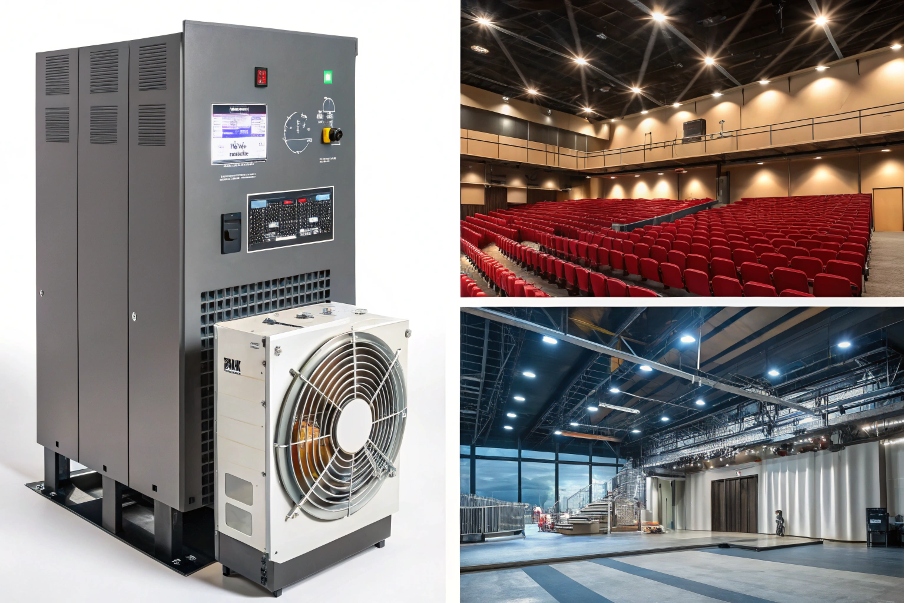

Lighting control: dimming systems for theaters and stages.

Motor soft start: Let high-power motors start smoothly to avoid current shocks.

Speed control: Control the speed of fans, pumps and other equipment.

Heating control: Temperature and power control of industrial furnaces and welding machines.

Power regulation: AC voltage regulator, etc.

To sum up: Phase-controlled thyristor is a powerful and cost-effective power control component. As long as you fully understand its working principle and carefully consider key factors such as voltage and current, dV/dt, dI/dt, gate drive and heat dissipation when selecting, and with necessary protection circuits and safety measures, it can become a powerful assistant in your project. I hope this article can light a beacon for you on the road of purchasing and using thyristors.
