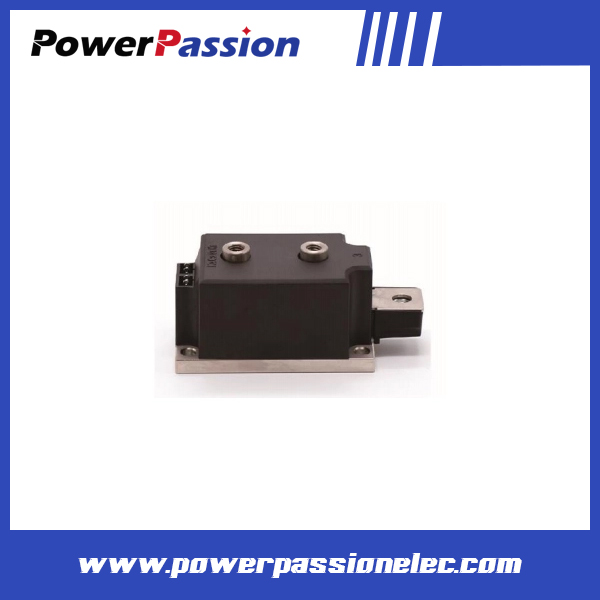

Thyristor/Diode Module

Availability:

Quantity:



Inquire Add to Basket

Product Description

Power modules can be divided into two categories: controllable modules and rectifier modules based on internal packaging chips; Distinguished from specific uses, it can be divided into: ordinary thyristor modules (MTC\MTX\MTK\MTA), ordinary rectifier modules (MDC), ordinary thyristors, rectifier hybrid modules (MFC), fast thyristors, rectifiers and hybrids Modules (MKC\MZC), non-insulated thyristors, rectifiers and hybrid modules (also commonly known as welding machine special modules MTG\MDG), three-phase rectifier bridge output thyristor modules (MDS), single-phase (three-phase phase) rectifier bridge module (MDQ), single-phase half-controlled bridge (three-phase fully controlled bridge) module (MTS) and Schottky module, etc.

型号	IT(AV)	VDEM/VRRM	IDRM/IRRM	VTM		IGT	VGT	IH	dV/dt	VISO	外形
			V=VDRM/VRRM	VTM		VD=12V			Vp=2/3VDEM	50HZ,RMS2mA,1min
			125℃	25℃		VD=12V			125℃	25℃
TYPE	@85℃		MAx	MAx	ItM		25℃		Min	Min
TYPE	A	V	V	V	A	mA	V	mA	V/μs	V	Outline
MFC/MFK/MFA/MFX 1200-2000V风冷(Air cooling)
MF90-	90	1200-2000	15	1.45/1.30	270	30-100	0.8-2.2	20-120	1000	2500	Mo2-20
MF110-*	110	1200-2000	15	1.45/1.30	330	30-100	0.8-2.2	20-120	1000	2500	Mo2-20
MF135-*	135	1200-2000	25	1.45/1.30	400	30-100	0.8-2.2	20-120	1000	2500	Mo2-34
MF160-*	160	1200-2000	25	1.45/1.30	480	30-100	0.8-2.2	20-120	1000	2500
MF185-*	185	1200-2000	35	1.45/1.30	560	30-100	0.8-2.2	20-120	1000	2500
MT200-*	200	1200-2000	20	1.45/1.30	600	30-100	0.8-2.2	20-120	1000	2500	Mo2-36
MF200-*	200	1200-2000	20	1.45/1.30	600	30-100	0.8-2.2	20-120	1000	2500	Mo4-53
MF250-*	250	1200-2000	20	1.45/1.30	750	30-100	0.8-2.2	20-120	1000	2500
MF300-*	300	1200-2000	20	1.45/1.30	900	30-100	0.8-2.2	20-120	1000	2500
MF350-	350	1200-2000	35	.45/1.30	1050	30-100	0.8-2.2	20-120	1000	2500
MF400-*	400	1200-2000	45	1.45/1.30	1200	30-100	0.8-2.2	20-120	1000	2500	Mo4-63
MF500-*	500	1200-2000	45	1.45/1.30	1500	30-100	0.8-2.2	20-120	1000	2500	Mo4-63
MF600-*	600	1200-2000	55	1.45/1.30	1800	30-100	0.8-2.2	20-120	1000	2500	Mo4-66
MF800-*	800	1200-2000	65	1.60/1.30	2400	30-100	0.8-2.2	20-120	1000	2500	Mo4-76
MF1000-*	1000	1200-2000	65	1.60/1.30	3000	30-100	0.8-2.2	20-120	1000	2500	Mo4-77
MFC/MFK/MFA/MFX2200-3500V风冷(Air cooling)
MF160-*	160	2200-3500	30	2.20/2.00	480	30-100	0.8-2.2	20-120	1000	2500-4000	Mo2-34
MF200-*	200	2200-3500	35	1.80/1.60	600	30-100	0.8-2.2	20-120	1000	2500-4000	Mo4-53
MF250-*	250	2200-3500	35	1.90/1.70	750	30-100	0.8-2.2	20-120	1000	2500-4000
MF300-*	300	2200-3500	35	1.90/1.70	900	30-100	0.8-2.2	20-120	1000	2500-4000
MF350-*	350	2200-3500	50	2.00/1.80	1050	30-100	0.8-2.2	20-120	1000	2500-4000
MF400-*	400	2200-3500	50	2.10/1.90	1200	30-100	0.8-2.2	20-120	1000	2500-4000	Mo4-63
MF500-*	500	2200-3500	50	2.10/1.90	1500	30-100	0.8-2.2	20-120	1000	2500-4000	Mo4-63
MF600-*	600	2200-3500	60	2.00/1.80	1800	30-100	0.8-2.2	20-120	1000	2500-4000	Mo4-66
MF800-*	800	2200-3500	70	2.15/1.95	2400	30-100	0.8-2.2	20-120	1000	2500-4000	Mo4-76
MF1000-*	1000	2200-3500	80	2.20/2.00	3000	30-100	0.8-2.2	20-120	1000	2500-4000	Mo4-77
MFC/MFK/MFA/MFX 3600-4500V风冷(Air cooling)
MF160-*	160	3600-4500	30	2.40/2.20	480	30-100	0.8-2.2	20-120	1000	4000-5000	Mo2-34
MF200-*	200	3600-4500	35	2.00/1.80	600	30-120	0.8-2.2	20-120	1000	4000-5000	Mo4-53
MF250-*	250	3600-4500	35	2.10/1.90	750	30-120	0.8-2.2	20-120	1000	4000-5000
MF300-*	300	3600-4500	35	2.20/2.00	900	30-120	0.8-2.2	20-120	1000	4000-5000
MF350-*	350	3600-4500	35	2.20/2.00	1050	30-120	0.8-2.2	20-120	1000	4000-5000
MF400-*	400	3600-4500	70	2.50/2.30	1200	30-120	0.8-2.2	20-120	1000	4000-5000	Mo4-63
MF500-*	500	3600-4500	70	2.60/2.40	1500	30-120	0.8-2.2	20-120	1000	4000-5000	Mo4-63
MF600-*	600	3600-4500	70	2.50/2.30	1800	30-120	0.8-2.2	20-120	1000	4000-5000	Mo4-66
MF800-*	800	3600-4500	80	2.40/2.20	2400	30-120	0.8-2.2	20-120	1000	4000-5000	Mo4-76
MF1000-*	1000	3600-4500	80	2.50/2.30	3000	30-120	0.8-2.2	20-120	1000	4000-5000	Mo4-77
Note: * indicates the connection mode ** indicates the module voltage

型号	IT(AV)	VDEM/VRRM	IDRM/IRRM	VTM		IGT	VGT	IH	dV/dt	VISO	外形
			V=VDRM/VRRM	VTM		VD=12V			Vp=2/3VDEM	50HZ,RMS2mA,1min
			125℃	25℃		VD=12V			125℃	25℃
TYPE	@85℃		MAx	MAx	ItM		25℃		Min	Min
TYPE	A	V	V	V	A	mA	V	mA	V/μs	V	Outline
MFC/MFK/MFA/MFX1200-2000V风冷(Air cooling)
MF400-*	400	1200-2000	35	1.5/1.30	1200	30-100	0.8-2.2	20-120	1000	2500	Mo4-53-S
MF500-*	500	1200-2000	45	1.5/1.30	1500	30-100	0.8-2.2	20-120	1000	2500	Mo4-63-S
MF600-*	600	1200-2000	55	1.5/1.30	1800	30-100	0.8-2.2	20-120	1000	2500	Mo4-66-S
MF800-*	800	1200-2000	65	1.5/1.30	2400	30-100	0.8-2.2	20-120	1000	2500	Mo4-76-S
Note: * indicates the connection mode ** indicates the module voltage

Application

For motor drives, power supply, power transmission and distribution, railway transportation, metal smelting,machinery manufacturing, welding machines, chemical industry,renewable energy.
