Why a “Good” SCR Still Fails in Real Applications？

If you work with industrial power equipment, you’ve probably seen this situation before:

An SCR passes a basic test.
It looks fine on the bench.
But after installation, it overheats, misfires, or fails far earlier than expected.

So what went wrong?

The truth is, many SCR failures don’t come from “bad devices” — they come from unrealistic expectations about testing and selection.

This article explains why simple SCR testing often isn’t enough, what really causes failures in real applications, and how to reduce risk when choosing replacement or new SCRs.

1. Passing a Simple Test Does NOT Mean the SCR Is “Safe”

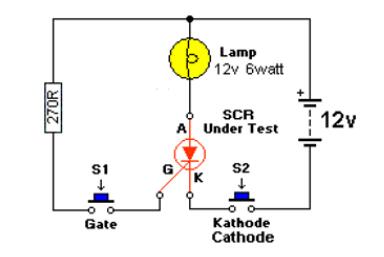

Basic SCR tests — such as multimeter checks or simple trigger tests — are useful, but limited.

They usually confirm only three things:

• The SCR is not shorted

• The gate can trigger conduction

• The device can latch under light load

What they don’t tell you:

• How the SCR behaves under repeated current surges

• How it reacts to fast voltage changes

• Whether it can survive real thermal cycling

• Whether it will remain stable in a noisy industrial environment

In other words, bench tests show that an SCR is alive — not that it is suitable.

2. Why SCRs Fail in Real Equipment (Not in the Lab)

Most SCR failures happen after installation, under operating stress.

Here are the most common real-world causes:

Thermal stress

Even if average current is within limits, repeated heating and cooling slowly damages the internal structure.
This is especially common in:

• Welding power supplies

• Heating controllers

• Phase-angle regulators

Surge current fatigue

Short current spikes during startup or load changes may not destroy the SCR instantly — but over time, they weaken it.

Voltage transients

Fast voltage changes (high dv/dt) can cause unintended triggering, extra losses, and overheating — problems that never appear in simple tests.

Mismatch between SCR and application

An SCR that works perfectly in one system may fail quickly in another, even at similar current levels, because application conditions matter more than datasheet numbers.

3. Why “Testing More” Is Not the Real Solution

Some users try to solve failures by doing more complex testing.

But here’s the reality:

• Advanced testing requires specialized equipment

• Results depend heavily on test conditions

• Most OEMs and system integrators don’t have time to simulate every real-world scenario

Even worse, passing an advanced test still doesn’t guarantee long-term reliability if the SCR was never designed for that application in the first place.

That’s why experienced engineers focus less on “How do I test this SCR?”
and more on “Is this SCR appropriate for my operating environment?”

4. What Actually Reduces SCR Failure Risk

Instead of relying on testing alone, successful OEMs focus on application-driven selection.

Here’s what really helps:

✅ Understanding the load behavior

Is it resistive, inductive, or highly dynamic?
Does it generate frequent surges or sharp voltage edges?

✅ Choosing proper voltage and current margins

Not just rated values, but realistic safety margins based on operating conditions.

✅ Considering switching characteristics

Fast-switching or fast-turn-off SCRs are essential in many modern power systems.

✅ Thermal design compatibility

SCR package type, mounting method, and cooling all matter — often more than the SCR itself.

✅ Working with suppliers who understand applications

Suppliers who ask how you use the SCR usually deliver better long-term results than those who only quote datasheet values.

5. When Replacement Is Smarter Than “Making It Work”

In many industrial cases, trying to “make an existing SCR work” costs more in downtime than choosing the right replacement early.

Typical signs replacement is the better option:

• Repeated unexplained failures

• Overheating despite correct wiring

• Inconsistent triggering

• SCRs passing basic tests but failing in operation

At this point, selection matters more than testing.

6. A Practical Takeaway for OEMs and System Builders

SCR testing has its place — but it is not a reliability guarantee.

If your application involves:

• High surge currents

• Fast voltage changes

• Continuous power regulation

• Harsh thermal conditions

Then SCR choice, design margin, and application experience matter far more than a simple pass/fail test.

That’s why many OEMs prefer working with suppliers who understand real operating conditions, not just component specifications.

7. How We Support Better SCR Selection

At PowerPassionElectric, we don’t just supply SCR devices.

We help customers:

• Match SCRs to real load behavior

• Select appropriate fast-switching or standard types

• Optimize voltage, current, and thermal margins

• Reduce failure risk before equipment goes into service

If you’re facing unexplained SCR failures or planning a new power design, choosing the right device early is often the most effective solution.

Feel free to contact our team for application-based SCR recommendations.
