Outline of Power Module

Availability:

Quantity:



Inquire Add to Basket

Product Description

Power modules can be divided into two categories: controllable modules and rectifier modules based on internal packaging chips; Distinguished from specific uses, it can be divided into: ordinary thyristor modules (MTC\MTX\MTK\MTA), ordinary rectifier modules (MDC), ordinary thyristors, rectifier hybrid modules (MFC), fast thyristors, rectifiers and hybrids Modules (MKC\MZC), non-insulated thyristors, rectifiers and hybrid modules (also commonly known as welding machine special modules MTG\MDG), three-phase rectifier bridge output thyristor modules (MDS), single-phase (three-phase phase) rectifier bridge module (MDQ), single-phase half-controlled bridge (three-phase fully controlled bridge) module (MTS) and Schottky module, etc.

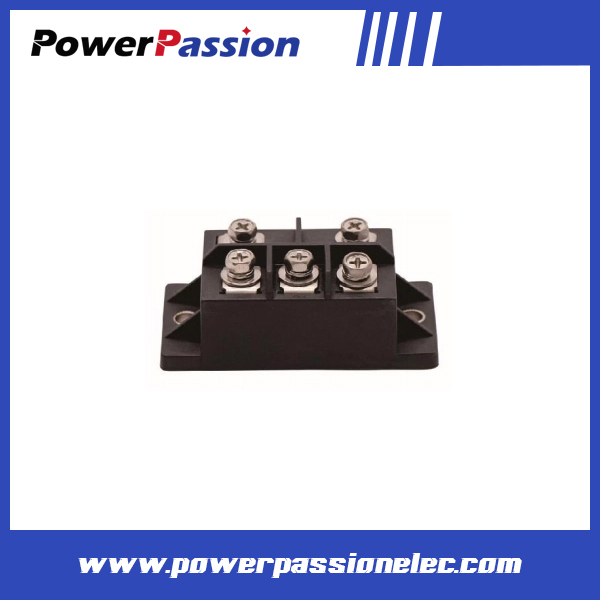

Thyristor Module

High-Quality Construction: This SCR power control module is designed with high-quality components, ensuring reliable performance and durability in demanding applications, such as welding machines.

Versatile Application: The module is suitable for various machine applications, including welding machines, and can be configured in single or array configurations to meet specific user requirements.

Wide Operating Temperature Range: The module operates within a wide temperature range of -40°C to 150°C, making it suitable for use in harsh environments.

High-Current Handling: The module can handle a maximum current of 800A, making it ideal for applications that require high power control.

Comprehensive Shipping Options: The module is shipped from multiple ports, including Shanghai, Guangzhou, and Shenzhen, and can be shipped via EMS, DHL, UPS, FedEx, and TNT, ensuring fast and convenient delivery to customers worldwide.

Product name	High quality fast delivery control power ir thyristor s1219
Color	Black
Usage	HVDC transmission, reactive power compensation, air conditioning, switching switch, motor excitation, induction heating, electrical heating, locomotive traction and transmission
Service	24 hours service

Type	IT(AV)	VDRM/ VRRM	VTM/ITM		IDRM/IRRM	VGT	Viso
	A	V	V	A	mA	V	V(AC)
MT 30A	30	400-1800	1.5	80	8	2.5	2500
MT 60A	55	400-1800	1.5	80	8	2.5	2500
MT 90A	90	400-1800	1.9	270	15	2.5	2500
MT 120A	110	400-1800	1.9	330	20	2.5	2500
MT 200A	200	400-1800	1.9	600	30	2.5	2500
MT 250A	250	400-1800	1.9	750	30	2.5	2500
MT 300A	300	400-1800	1.9	900	40	2.5	2500
MT 400A	400	400-1800	1.9	1050	40	3.0	2500
MT 500A	500	400-1800	1.9	1500	40	3.0	2500
MT 800A	800	400-1800	1.9	2400	40	3.0	2500
MT 500*A	500	400-1800	1.9	1500	40	3.0	2500
MT 800*A	800	400-1800	1.9	2400	40	3.0	2500

hhh

product28

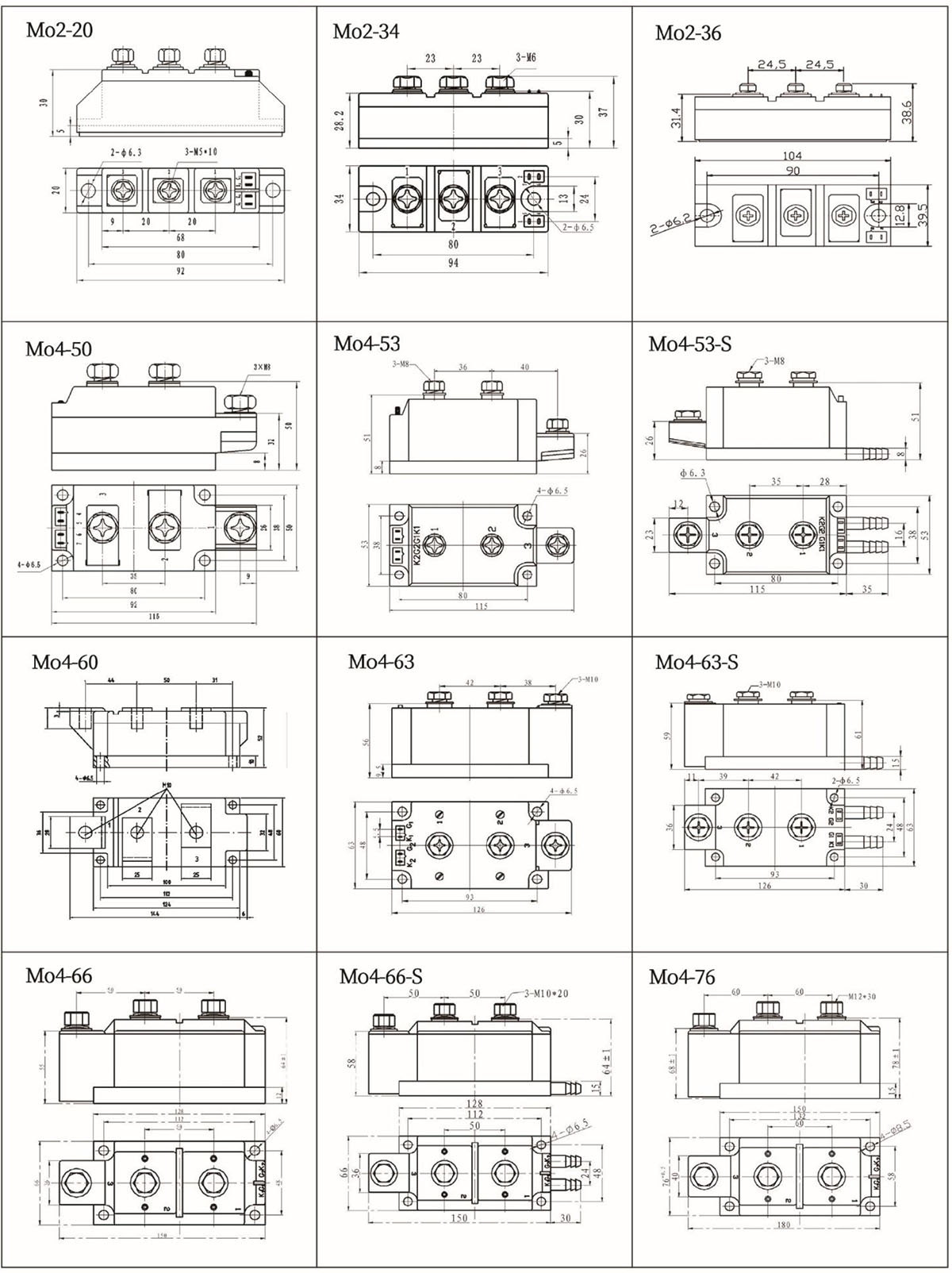

product29

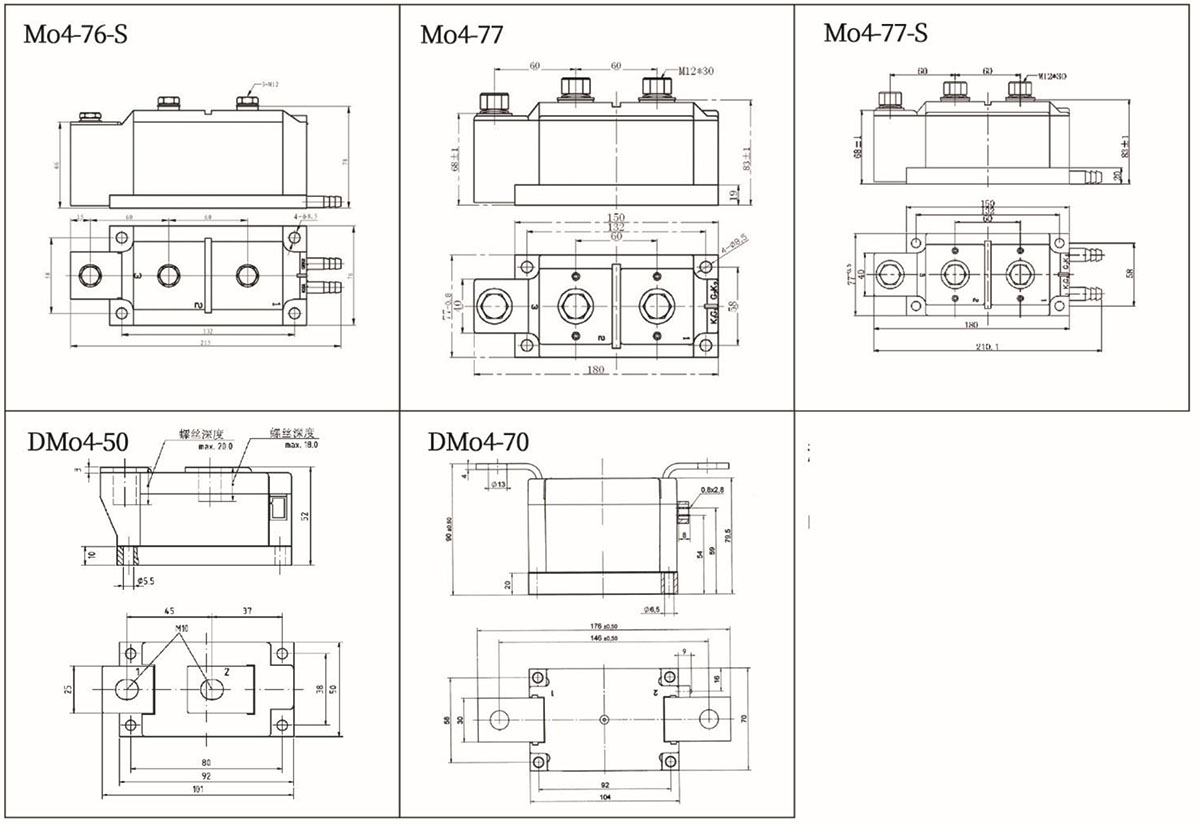

product30

Company Profile

At Zhenjiang Zhendi Electric Technology Co., Ltd, we pride ourselves on being a distinguished manufacturer of thyristor chips, evolved from a historical state-owned enterprise, leading the charge in both innovation and unparalleled quality.

Since our esteemed beginning in 1978, we have consistently dedicated ourselves to the design, production, and R&D of advanced thyristors. Over the years, we have transformed into a pioneering leader in solid state relays and thyristor rectifier modules. As a recognized national high-tech enterprise, we excel in producing cutting-edge AC power control controllers and much more.

Our unwavering dedication to exceptional customer service, paired with our promise of delivering competitively priced, premium quality products, distinctly positions us as industry forerunners.

Company Equipment

Certifications

Our cooperative partners

Packaging & Shipping

FAQ

Q Do you provide after-sales service?

A Of course, we offer comprehensive after-sales service. If you encounter any issues with our products during use, please feel free to contact us, and we will do our best to solve your problems. Within the warranty period, if there are any quality issues with the product, we will replace or repair it for free.
Q How can I place an order for your thyristor products?

A You can place an order by consulting our sales staff online, sending a purchase order to our email, or calling our order hotline directly.
Q Do you provide samples, and how is the charging handled?

A For low-value standard products, we can provide free samples for testing, but the customer is responsible for the shipping costs. High-value product samples come with a discount, which can be discussed on a case-by-case basis.
Q Do you have SCR Power Regulators products in stock?

A We have some conventional models in stock. For specific inventory, please consult our sales staff. For non-stock products, our delivery time is usually 15-30 days.
Q How can one determine if a thyristor is damaged?

A You can determine if a thyristor is damaged by checking if there are any anomalies in its forward and reverse blocking voltages. If so, the thyristor may be damaged. For specific products, please consult an engineer for detailed numerical reference and guidance.
