Single/Three Phases Rectification Bringe Modules

Power modules can be divided into two categories: controllable modules and rectifier modules based on internal packaging chips;

Distinguished from specific uses, it can be divided into: ordinary thyristor modules (MTC\MTX\MTK\MTA), ordinary rectifier modules (MDC), ordinary thyristors, rectifier hybrid modules (MFC), fast thyristors, rectifiers and hybrids Modules (MKC\MZC), non-insulated thyristors, rectifiers and hybrid modules (also commonly known as welding machine special modules MTG\MDG), three-phase rectifier bridge output thyristor modules (MDS), single-phase (three-phase phase) rectifier bridge module (MDQ), single-phase half-controlled bridge (three-phase fully controlled bridge) module (MTS) and Schottky module, etc.

Features:

• Isolated mounting base, 2500V~6000V

• International standard package

• Solder joint technology with increased power cycling capability

• Simple mounting and easy maintenance

• Max junction temperature up to 140°C

• Space and weight saving

• Low forward voltage drop

Applications:

• Supplies for DC power equipment

• DC supply for PWM inverter

• Battery DC power Supplies

• Field supply for DC motor

• Soft start Capacitor

• Electric drives and auxiliaries

• Inverter welder

• Input rectifer for switch mode power supplies(SMPS)

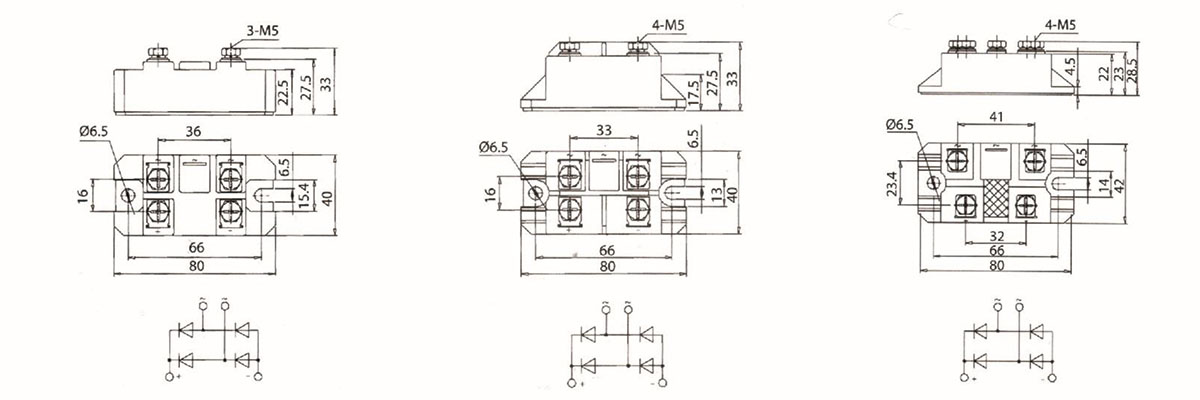

Outline
