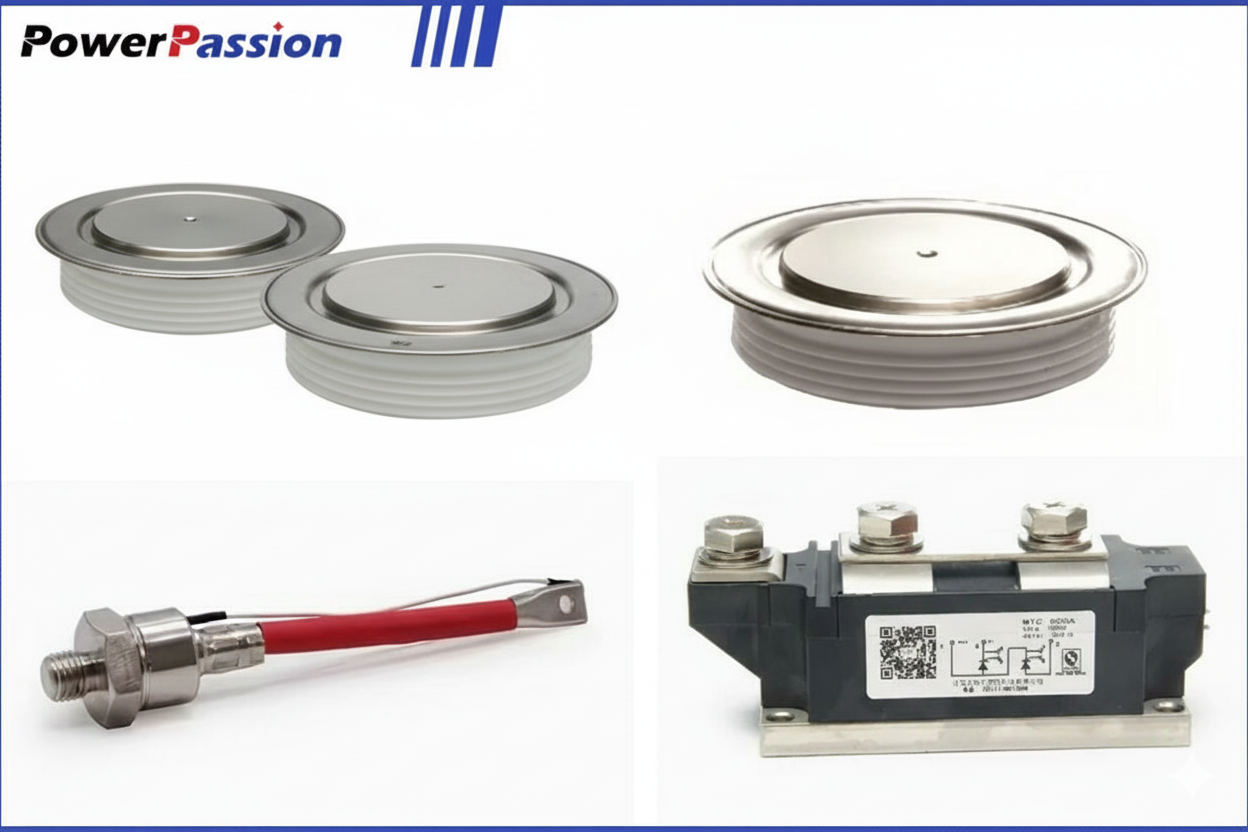

When you open the cabinet of an industrial power controller or rectifier, you'll notice that not all semiconductors look the same. The way a diode or thyristor is packaged says a lot about its power level, thermal performance, and mechanical design. For medium- to high-power applications, the three most common package types are Stud, Disc, and Power Module.
Stud-mounted diodes and thyristors feature a threaded metal base for simple bolt-on installation.
This design provides excellent thermal performance and mechanical strength, making it ideal for medium to high-power applications such as motor drives, plating rectifiers, and temperature control systems. With typical ratings from 50 A to over 400 A, stud devices combine reliability with compact form.
Disc-type diodes and thyristors take thermal management one step further.
They are clamped between two heatsinks, allowing double-sided cooling — a structure commonly used for high-power and surge-intensive environments such as welding systems, induction heating, and high-capacity converters.Their thermal resistance is extremely low (often below 0.1 K/W), and their surge energy tolerance is unmatched. For example, a 200 A disc diode can handle tens of thousands of amperes in short bursts (AS Energi datasheet).While they require proper clamping force and precision alignment, they reward users with long-term stability under extreme load.
Power modules bring multiple devices together inside one insulated housing.
They simplify wiring and installation — perfect for industrial heating zones, energy controllers, and automation equipment.
Modern modules, such as those from Infineon or Littelfuse, use pressure-contact design and pre-applied thermal materials for improved reliability.
At PowerPassionElectric, our SCR power modules follow the same standard: robust copper baseplates, temperature protection, and flexible mounting options for safe, efficient control.
Stud type: medium to high power, simple assembly, excellent reliability.
Disc type: high power, dual-side cooling, superior surge capacity.
Module type: convenient installation, compact design, flexible integration.
Each format serves a specific purpose — and the best results come from matching your system's requirements with the right package.
| Package Type | Typical Power Range | Cooling Method | Key Advantages | Common Applications |
|---|---|---|---|---|
| Stud Package | Medium to High Power (50 A – 400 A) | Single-sided (bolt-on heatsink) | Excellent thermal performance and strong mechanical design. Simple to install and maintain. | Motor drives, rectifiers, voltage regulators, temperature controllers. |
| Disc Package | Medium to High Power (100 A – >1000 A) | Dual-sided (clamped between two heatsinks) | Very low thermal resistance, high surge tolerance, superior stability under heavy load. | Welding systems, induction heating, large converters, traction power. |
| Power Module | Medium Power to Integrated Systems | Baseplate (single heatsink, often insulated) | Compact, easy wiring, supports multi-device integration (diode + thyristor). | Industrial heating zones, automation, energy controllers. |
Choose Stud if you need a durable, easy-to-install solution with solid thermal performance.
Choose Disc for heavy-duty power and surge conditions requiring long-term reliability.
Choose Module for compact layouts and modern control systems needing fast integration.
At PowerPassionElectric, we help customers worldwide match the right package to their system — balancing performance, safety, and cost-effectiveness.
